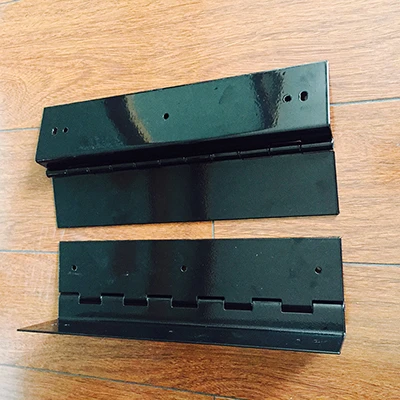

Piano Hinge Tare da Tazarar Ramin

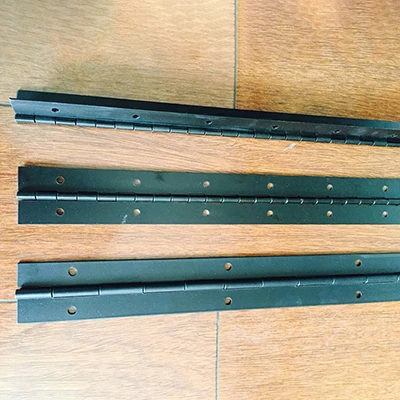

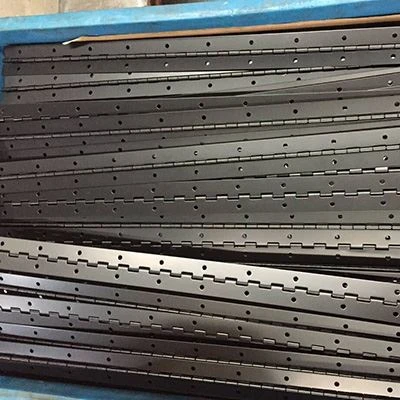

Piano hinge tare da tazarar ramuka shine ci gaba mai tsayi wanda tsayinsa ya fi faɗin sa. Ya ƙunshi dogayen tsiri guda biyu waɗanda aka haɗa ta hanyar -mandrel. Zai iya ba da goyon baya iri ɗaya tare da duk farfajiyar shigarwa. Ya dace musamman don ƙofofin majalisar, teburi masu naɗewa da murfi masana'antu waɗanda ke buƙatar jujjuyawar axis. Wannan ƙirar tana da ramukan hawa da aka haƙa a gaban tsayayyen nesa a allon shafin. An tsara ƙayyadaddun ƙayyadaddun tazarar ramuka na gama gari bisa ga ka'idodin DIN 68121 don zama milimita hamsin ko millimita ɗari, kuma kuskuren matsayi na kowane ramuka guda uku a jere bai wuce 0.2 millimeters ba. Wannan yana tabbatar da cewa ramuka da yawa suna daidaitawa lokaci guda ba tare da buƙatar yin reaming ko yin rajista ba, yana rage mahimmin lokacin taro. Ɗaukar hinge mai tsayin milimita 1,000 a matsayin misali, yawanci ana sanye shi da ramukan hawa ashirin{15}} ɗaya. Tare da sukurori masu dacewa, ana iya samun madaidaicin madaidaicin kowane milimita hamsin, ta yadda ƙofar kofa ta kasance a ko'ina kuma tana guje wa faɗan gida ko sagging.





Dangane da kayan aiki da aiki, an yi hinge da sanyin bakin karfe{0} na birgima kuma ana yin ta ta ci gaba da birgima. An bar ƙaramin tazara tsakanin maɗaura da farantin ganye don rage jujjuyawar juye-juye. Dangane da hanyar gwajin GB/T 2189, a ƙarƙashin yanayin mitar buɗewa da rufewa sau goma a cikin minti ɗaya da nauyin 50 Newtons, radial lalacewa na hinge bayan zagayowar 100,000 bai wuce 0.05 mm ba, kuma haɓakar juzu'in jujjuyawar baya wuce 15%, yana tabbatar da tsayin daka.{9}} A lokaci guda, saman farantin ganye ya wuce kuma yana iya jurewa sa'o'i 720 ba tare da tsatsa ba bisa ga gwajin gishiri mai tsaka tsaki na ASTM B117, wanda ya isa ya jimre da yanayin ɗanɗano na cikin gida da yanayin masana'antu gabaɗaya. Ƙirar tazara mai ma'ana ba kawai tana sauƙaƙe daidaitawa tare da daidaitattun bayanan martaba iri-iri ba, har ma yana bawa masu amfani damar yin amfani da tsayayyen tsari{14}} lokacin shigarwa, wanda ba kawai yana tabbatar da ƙarfin haɗin gwiwa ba amma kuma yana sauƙaƙe sarrafa kaya. Ya dace da haɗin haɗakarwa na ɗakunan kula da lantarki, akwatunan katako da firam ɗin alloy na aluminum.









---

---













Gina kayan aiki a kowane ingantattun zane, yin amfani da gyare-gyare a duk lokacin samar da gwaji kamar yadda ake buƙata.







Na'ura da wuri{0}}samfurin mataki kuma aika su ga abokin ciniki don amincewa.









Aiwatar da samar da cikakkiyar daidaituwa tare da takaddun injiniya da samfuran batch na matukin jirgi.

Bayan kammala binciken ƙarshe, amintacce shirya abubuwa kuma shirya jigilar kaya ga masu siye.





Amintaccen takaddun ƙira daga abokan ciniki, ko ƙirƙira shimfidu bisa ga rubuce-rubucen sharuɗɗansu ko kawo misalai na zahiri.

Daga baya, duka bangarorin biyu dole ne su tabbatar da takaddun da aka amince dasu.









Gabatar da ƙimar farashin da kuma tabbatar da adadin sayayya, ƙididdige kowane bangare kamar sharuɗɗan ciniki,

hanyoyin aika kuɗi, ƙayyadaddun kwali, da ƙarin bayanan da suka dace.
